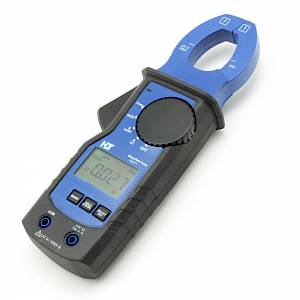

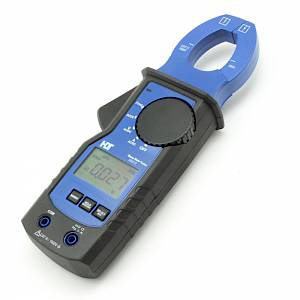

Clamp Meters series 300xx
The current clamps of the 300xx series are especially known for their compact dimensions and the highest safety category CAT IV / 1000V. As the latest addition to the HDT CleanTec family for electricians, they perform the most reliable work every single day.
Model | 30011 | 30012 | 30020 | 30021 | 30030 (from Q4/2022) | 30031 (from Q4/2022) |
LCD | 7 Segments, 4 digit display, APO, Continuity, Diode, Battery status, Polarity, AC/DC, Hold, Min/Max, Measuring unit | 7 Segments, 4 digit display, APO, Continuity, Diode, Battery status, Polarität, AC/DC, Hold, Min/Max, Zero, Measuring unit | 7 Segments, 4 digit display, NCV, APO, LPF, Continuity, Diode, Battery status, Polarity, AC/DC, Hold, Min/Max, Zero, Measuring unit | 7 Segments, 4 digit display, NCV, APO, LPF, Continuity, Diode, Battery status, Polarity, AC/DC, Hold, Min/Max, Zero, Inrush, BlueTooth, Measuring unit | 7 Segments, 4 digit display, NCV, APO, LPF, Continuity, Diode, Battery status, Polarity, AC/DC, Hold, Min/Max, Zero, Measuring unit | 7 Segments, 4 digit display, NCV, APO, LPF, Continuity, Diode, Battery status, Polarity, AC/DC, Hold, Min/Max, Zero, Inrush, BlueTooth, Measuring unit |
Backlight | no | yes | ||||
LED | no | Torch light, NCV | ||||
Voltage measurement | 1mV...1000VAC, 1mV...1500VDC | 1 mV....1000 V AC TRMS, 1 mV....1500 V DC | ||||
Current measurement | Clamp: 0.1....400 A AC | Clamp: 0.1....400 A AC, 0.01....400 A DC |
Clamp: 0.1....400 A AC TRMS, 0.01 ...... 400 A DC Jack: 0.1 uA...400 uA AC TRMS, DC |
Clamp: 0.1....1000 A AC TRMS, 0.01.....1000 A DC Jack: 0.1 uA....400 uA AC TRMS, DC |
||
Resistance | 0....40 MOhm | |||||
Capacity | 10 nF....100 uF | |||||
Continuity | < 30 R buzzer sound | |||||
Diode test | 0....1.5 V | |||||
Frequency | up to 10 MHz | |||||
Jaw opening | 35 mm | |||||
Leads connectors distance | 25 mm | |||||
TRMS | no | yes | ||||
Power supply | 2 x 1.5 V AAA | |||||
NCV | no | yes | ||||
Inrush Current - Jaw | no | yes | no | yes | ||
LPF | no | yes, 1 KHz / -3 dB | ||||
Torch light | no | yes | ||||
Auto-Power-Off | yes | |||||
Self Test | yes | |||||
Bluetooth | no | yes, 5.0 | no | yes, 5.0 | ||
Overvoltage category | CAT III / 1000 V | CAT IV / 1000V | ||||
In compliance with | IEC 61010-1, IEC 61010-2-032 | |||||
Dimension | approx. 220 x 81 x 43 mm | approx. 240 x 81 x 43 mm | ||||
Weight | approx. 260 g (wthout batteries) | approx. 300 g (without batteries) |
