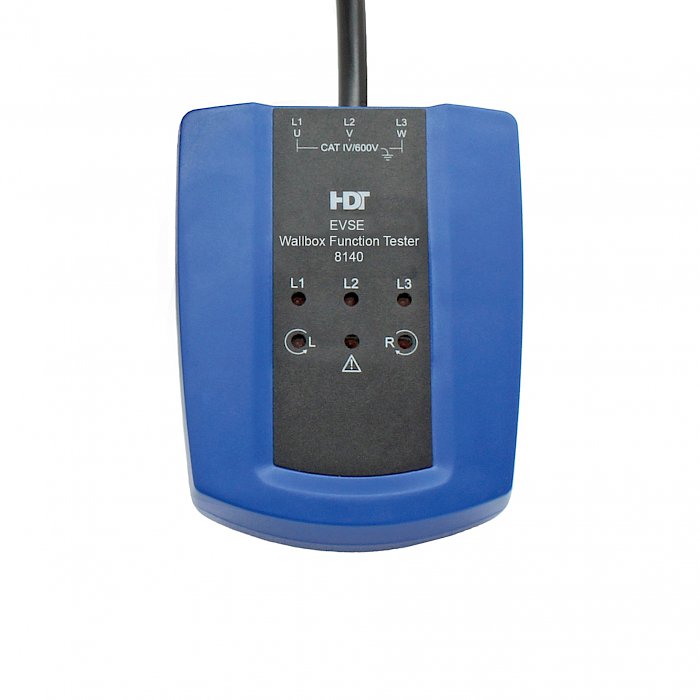

EVSE wallbox function tester

Model number: 8140
Back to overview

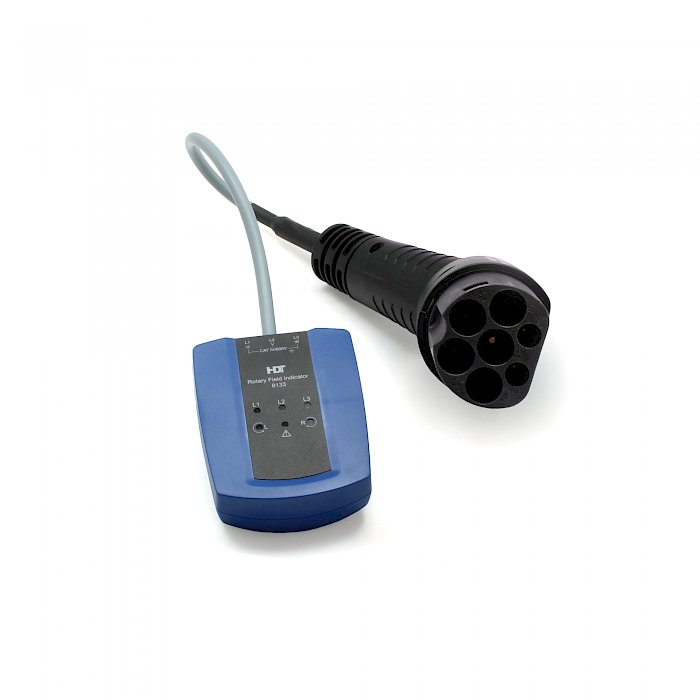

Type-2 plug to connect directly to EVSE charging point.


• Rotary field indicator between phases L1, L2 and L3
   with phase indication with LEDs
• 4 position slider switch to simulate CP mode A, B, C and E
• Rotary field indication without battery
• Warning in case of wrong wiring
• The fixed Type-2 plug enables quick and easy testing
• 230 / 400 V AC 3~ 50 / 60 Hz
• CAT II / 300 V
